• Description
     04466-0D010
     HR1236

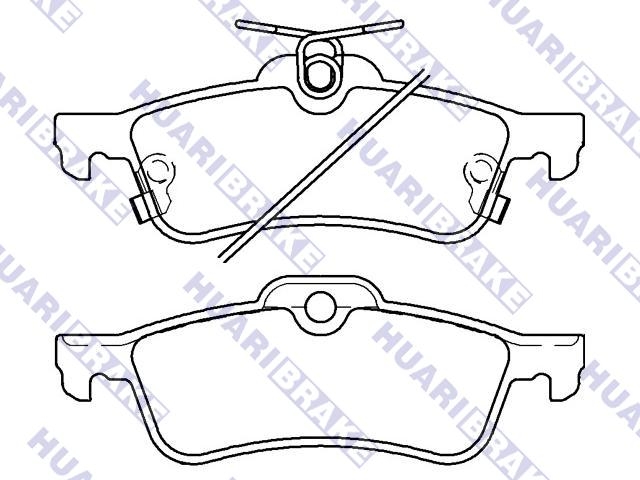

     Brake Pad Set
     SET

    Rear Axle
    Brake System : ATE
    Width : 123 mm
    Height : 43.7 mm
    Thickness : 15 mm

Brake Pad Set:04466-0D010
Model Engine Chassis Type CYL year
DAIHATSU CHARADE  5/11 - /
TOYOTA YARIS (_P13_)  9/11 - /
TOYOTA YARIS / VIOS Saloon (_P9_)  8/07 - /
TOYOTA YARIS  1/08 - /


  • Recommends every 5,000 km check Brake System
    ensure the normal operation of the braking system
  • Front brakes recommendations within 3-5 km replacement, or partial wear occurs case
  • Rear brakes is recommended to replace within 5-7 km
  • Replace the Disc brake when follow situation happen:
  • 1.Sensor alarm;
  • 2.Friction materials thickness less than 3mm;
  • 3.Friction materials becomes contaminated with brake fluid;
  • 4.Uneven wear within a set;
  • Replace the brake rote when follow situation happen:
  • 1.Vibrate when braking;
  • 2.Car vehicle performance more than 60000Km and braking unstable;
  • 3.Disc brake thickness wear more than 2mm;
